LEMANCO MODULAR BIN SYSTEMS

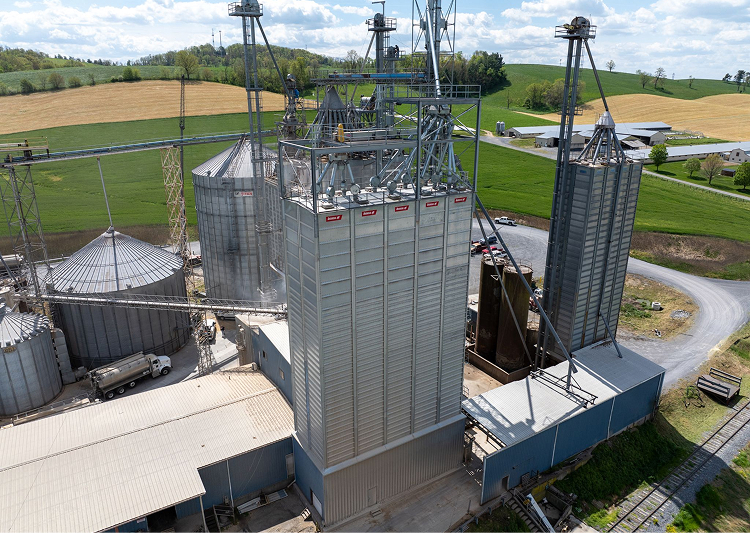

For over 60 years, industries throughout the world have turned to Chief Lemanco storage systems for the storage and gravity retrieval of dry bulk materials.

Pre-engineered and custom configured for efficient, economical and reliable service, these systems are ideal for storing feed ingredients, grains, aggregates, fertilizers and most dry bulk materials. Lemanco modular bins are designed to keep moisture out and dust in for a cleaner working environment.

Chief Lemanco storage systems can be designed to meet equipment loading requirements either above the bin roof or on the mezzanine floors in the main support structure.

TRUSTED WORLDWIDE FOR CUSTOMIZED STORAGE THAT IS DURABLE, RELIABLE AND EFFICIENT!

R

STRONG

Bin components are 35% stronger than industry standards

R

EFFICIENT

Unique side sheet design and fewer components to assemble result in fast and efficient installation

R

CUSTOMIZED

Multiple bin sizes ensure all your present and future dry bulk materials needs

R

OPTIONS

Girts, purlins and siding, mezzanine floor options, color cladding and other bin accessories available

Specs

Lemanco 6' Square

Lemanco 6' Square (1.83 m Square)
Tiers	Overall (ft)	Overall (m)	Level Full (cu ft)	Level Full(cu m)	Level Full (tons)	Level Full(metric ton)
1	13.02	3.97	229	6.48528	4.58	4.15
2	16.52	5.04	355	10.0536	7.1	6.44
3	20.02	6.1	481	13.62192	9.62	8.73
4	23.52	7.17	607	17.19024	12.14	11.01
5	27.02	8.24	733	20.75856	14.66	13.3
6	30.52	9.3	859	24.32688	17.18	15.59
7	34.02	10.37	985	27.8952	19.7	17.87
8	37.52	11.44	1111	31.46352	22.22	20.16
9	41.02	12.5	1237	35.03184	24.74	22.44
10	44.52	13.57	1363	38.60016	27.26	24.73
11	48.02	14.64	1489	42.16848	29.78	27.02
12	51.52	15.7	1615	45.7368	32.3	29.3
13	55.02	16.77	1741	49.30512	34.82	31.59
14	58.52	17.84	1867	52.87344	37.34	33.87
15	62.02	18.9	1993	56.44176	39.86	36.16
16	65.52	19.97	2119	60.01008	42.38	38.45
17	69.02	21.04	2245	63.5784	44.9	40.73
18	72.52	22.1	2371	67.14672	47.42	43.02

Lemanco 7' Square

Lemanco 7' Square (2.13 m Square)
Tiers	Overall (ft)	Overall (m)	Level Full (cu ft)	Level Full(cu m)	Level Full (tons)	Level Full(metric ton)
1	14.92	4.55	356	10.08	7.12	6.46
2	18.42	5.61	528	14.94	10.55	9.57
3	21.92	6.68	699	19.8	13.98	12.68
4	25.42	7.75	871	24.65	17.41	15.79
5	28.92	8.81	1042	29.51	20.84	18.91
6	32.42	9.88	1214	34.37	24.27	22.02
7	35.92	10.95	1385	39.22	27.7	25.13
8	39.42	12.02	1557	44.08	31.13	28.24
9	42.92	13.08	1728	48.94	34.56	31.35
10	46.42	14.15	1900	53.79	37.99	34.46
11	49.92	15.22	2071	58.65	41.42	37.58
12	53.42	16.28	2243	63.51	44.85	40.69
13	56.92	17.35	2414	68.36	48.28	43.8
14	60.42	18.42	2586	73.22	51.71	46.91
15	63.92	19.48	2757	78.08	55.14	50.02
16	67.42	20.55	2929	82.94	58.57	53.13
17	70.92	21.62	3100	87.79	62	56.25
18	74.42	22.68	3272	92.65	65.43	59.36

Lemanco 8' Square

Lemanco 8' Square (2.44 m Square)
Tiers	Overall (ft)	Overall (m)	Level Full (cu ft)	Level Full(cu m)	Level Full (tons)	Level Full(metric ton)
1	16.25	4.95	509	14.41	10.18	9.24
2	19.75	6.02	733	20.76	14.66	13.3
3	23.25	7.09	957	27.1	19.14	17.36
4	26.75	8.15	1181	33.45	23.62	21.43
5	30.25	9.22	1405	39.79	28.1	25.49
6	33.75	10.29	1629	46.13	32.58	29.56
7	37.25	11.35	1853	52.48	37.06	33.62
8	40.75	12.42	2077	58.82	41.54	37.68
9	44.25	13.49	2301	65.16	46.02	41.75
10	47.75	14.55	2525	71.51	50.5	45.81
11	51.25	15.62	2749	77.85	54.98	49.88
12	54.75	16.69	2973	84.2	59.46	53.94
13	58.25	17.75	3197	90.54	63.94	58.01
14	61.75	18.82	3421	96.88	68.42	62.07
15	65.25	19.89	3645	103.23	72.9	66.13
16	68.75	20.96	3869	109.57	77.38	70.2
17	72.25	22.02	4093	115.91	81.86	74.26
18	75.75	23.09	4317	122.26	86.34	78.33

Lemanco 10' Square

Lemanco 10' Square (3.05 m Square)
Tiers	Overall (ft)	Overall (m)	Level Full (cu ft)	Level Full(cu m)	Level Full (tons)	Level Full(metric ton)
1	19.25	5.87	895	25.35	17.9	16.24
2	22.75	6.93	1245	35.26	24.9	22.59
3	26.25	8	1595	45.17	31.9	28.94
4	29.75	9.07	1945	55.08	38.9	35.29
5	33.25	10.13	2295	64.99	45.9	41.64
6	36.75	11.2	2645	74.91	52.9	47.99
7	40.25	12.27	2995	84.82	59.9	54.34
8	43.75	13.34	3345	94.73	66.9	60.69
9	47.25	14.4	3695	104.64	73.9	67.04
10	50.75	15.47	4045	114.55	80.9	73.39
11	54.25	16.54	4395	124.47	87.9	79.74
12	57.75	17.6	4745	134.38	94.9	86.09
13	61.25	18.67	5095	144.29	101.9	92.44
14	64.75	19.74	5445	154.2	108.9	98.79
15	68.25	20.8	5795	164.11	115.9	105.14
16	71.75	21.87	6145	174.03	122.9	111.49
17	75.25	22.94	6495	183.94	129.9	117.84
18	78.75	24	6845	193.85	136.9	124.19

Lemanco 12' Square

Lemanco 12' Square (3.65 m Square)
Tiers	Overall (ft)	Overall (m)	Level Full (cu ft)	Level Full(cu m)	Level Full (tons)	Level Full(metric ton)
1	22.75	6.93	1458	41.29	29.16	26.45
2	26.25	8	1962	55.56	39.24	35.6
3	29.75	9.07	2466	69.84	49.32	44.74
4	33.25	10.13	2970	84.11	59.4	53.89
5	36.75	11.2	3474	98.38	69.48	63.03
6	40.25	12.27	3978	112.66	79.56	72.18
7	43.75	13.34	4482	126.93	89.64	81.32
8	47.25	14.4	4986	141.2	99.72	90.46
9	50.75	15.47	5490	155.48	109.8	99.61
10	54.25	16.54	5994	169.75	119.88	108.75
11	57.75	17.6	6498	184.02	129.96	117.9
12	61.25	18.67	7002	198.3	140.04	127.04
13	64.75	19.74	7506	212.57	150.12	136.19
14	68.25	20.8	8010	226.84	160.2	145.33
15	71.75	21.87	8514	241.12	170.28	154.47
16	75.25	22.94	9018	255.39	180.36	163.62
17	78.75	24	9522	269.66	190.44	172.76
18	82.25	25.07	10026	283.94	200.52	181.91
