Hopper Tanks

Chief Hopper Tanks

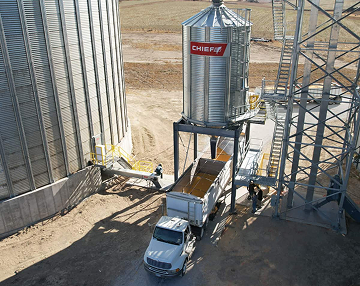

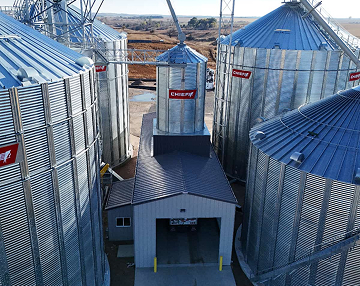

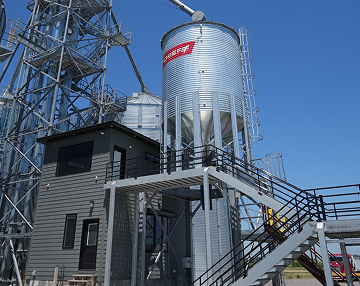

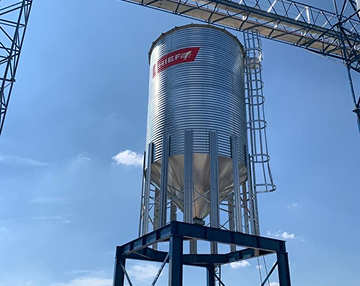

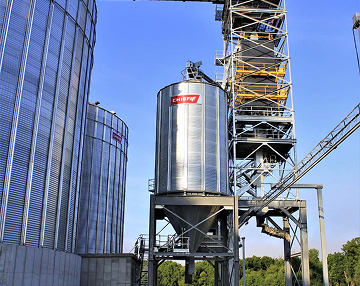

Chief hopper tanks offer the same ease of installation and unparalleled strength found in our commercial grain bins. Engineered from the highest quality materials, they provide long term reliability. For wet holding, storage, or load-out silos in your grain management system, contact Chief to maximize your storage dollar.

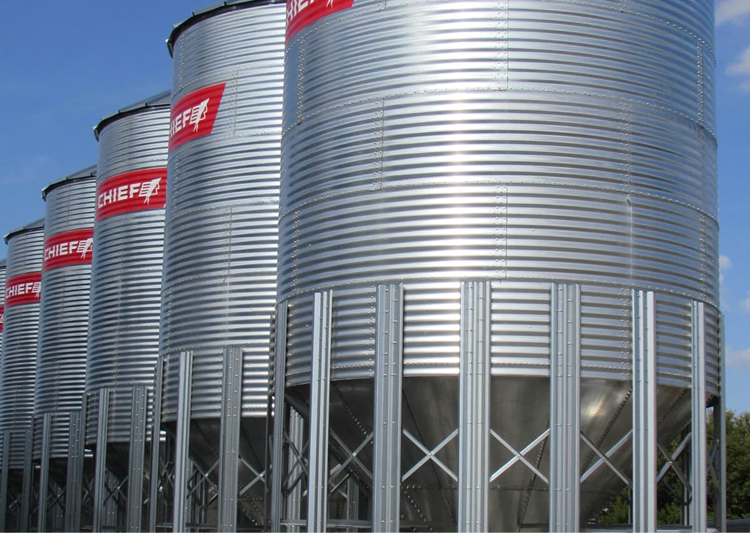

Commercial Hopper Tanks

For an exceptional value, Chief commercial hopper tanks are the smart choice!

R

FAST

Easy to Install

R

STRONG

Structured roofs available (CHT 10 and 12) for added strength

R

EASE

Wide range of capacities adaptable for different applications and commodities

R

QUALITY

Designed and built to stand up to high usage

Medium-Duty Hopper Tank

R

Hopper

Optional hopper access door available

R

SIDEWALLS

Built-in compression ring installed on MDHT 5, 6, and 7 above 6 rings tall

R

CAPACITIES

Capacities up to 11,648 Bushels

R

SIZES

Diameters of 15ft, 18ft and 21ft

Specs

Commercial Hopper Tank Model CHT 5 - 15'6"

Model CHT 5 - 15' 6" (4.7 m) Diameter
Model #	Eave Height (ft)	Overall Height (ft)	Eave Height (M)	Overall Height (M)	Eave Capacity (Bushels)	Peak Capacity (Bushels)	Eave Capacity (M)	Peak Capacity (M)	To Peak (metric ton)
CHT 5-4	24' 4''	29' 3''	7.42	8.92	2632	2851	87	95	72
CHT 5-5	27' 11''	32' 4''	8.51	9.86	3198	3417	106	114	87
CHT 5-6	31' 6''	35' 11''	9.6	10.95	3764	3983	125	132	101
CHT 5-7	35'	39' 5''	10.67	12.01	4330	4549	144	151	116
CHT 5-8	38' 6''	43'	11.73	13.11	4896	5115	163	170	130
CHT 5-9	42' 1''	46' 6''	12.83	14.17	5462	5681	182	189	144
CHT 5-10	45' 7''	50' 1''	13.89	15.27	6028	6247	200	208	159
CHT 5-11	49' 1''	53' 7''	14.96	16.33	6593	6813	219	226	173

Commercial Hopper Tank Model CHT 6 - 18'7"

Model CHT 6 - 18' 7" (5.7 m) Diameter
Model #	Eave Height (ft)	Overall Height (ft)	Eave Height (M)	Overall Height (M)	Eave Capacity (Bushels)	Peak Capacity (Bushels)	Eave Capacity (M)	Peak Capacity (M)	To Peak (metric ton)
CHT 6-5	28' 8''	35'	8.74	10.67	4747	5126	158	170	130
CHT 6-6	31' 6''	38' 6''	9.6	11.73	5562	5941	185	198	151
CHT 6-7	36' 9''	42' 1''	11.2	12.83	6376	6756	212	225	172
CHT 6-8	40' 3''	45' 7''	12.27	13.89	7191	7570	239	252	192
CHT 6-9	43' 10''	49' 2''	13.36	14.99	8006	8385	266	279	213
CHT 6-10	47' 4''	52' 8''	14.43	16.05	8821	9200	293	306	234
CHT 6-11	50' 11''	56' 2''	15.52	17.12	9636	10015	320	333	254
CHT 6-12	54' 5''	59' 9''	16.59	18.21	10451	10830	347	360	275

Commercial Hopper Tank Model CHT 7 - 21'8"

Model CHT 7 - 21' 8" (6.6 m) Diameter
Model #	Eave Height (ft)	Overall Height (ft)	Eave Height (M)	Overall Height (M)	Eave Capacity (Bushels)	Peak Capacity (Bushels)	Eave Capacity (M)	Peak Capacity (M)	To Peak (metric ton)
CHT 7-5	31' 4''	37' 7''	9.55	11.46	6640	7242	221	241	184
CHT 7-6	34' 11''	41' 2''	10.64	12.55	7750	8352	258	278	212
CHT 7-7	38' 5''	44' 8''	11.71	13.61	8859	9461	295	315	240
CHT 7-8	41' 11''	48' 2''	12.78	14.68	9968	10570	331	351	268
CHT 7-9	45' 6''	51' 9''	13.87	15.77	11077	11679	368	388	297
CHT 7-10	49' 1''	55' 3''	14.96	16.84	12186	12788	405	425	325
CHT 7-11	52' 7''	58' 10''	16.03	17.93	13296	13898	442	462	353
CHT 7-12	56' 1''	62' 4''	17.09	19	14405	15007	479	499	381
CHT 7-13	59' 8''	65' 11''	18.19	20.09	15514	16116	516	536	409
CHT 7-14	63' 2''	69' 5''	19.25	21.16	16623	17225	553	573	438

Commercial Hopper Tank Model CHT 8 - 24'9"

Model CHT 8 - 24' 9" (7.5 m) Diameter
Model #	Eave Height (ft)	Overall Height (ft)	Eave Height (M)	Overall Height (M)	Eave Capacity (Bushels)	Peak Capacity (Bushels)	Eave Capacity (M)	Peak Capacity (M)	To Peak (metric ton)
CHT 8-5	32' 9''	39' 11''	9.98	12.17	8888	9786	295	325	249
CHT 8-6	36' 4''	43' 6''	11.07	13.26	10336	11235	344	373	285
CHT 8-7	39' 10''	47'	12.14	14.33	11785	12684	392	422	322
CHT 8-8	43' 5''	50' 6''	13.23	15.39	13234	14133	440	470	359
CHT 8-9	46' 11''	54' 1''	14.3	16.48	14683	15581	488	518	396
CHT 8-10	50' 6''	57' 7''	15.39	17.55	16132	17030	536	566	433
CHT 8-11	54'	61' 2''	16.46	18.64	17580	18479	584	614	469
CHT 8-12	57' 6''	64' 8''	17.53	19.71	19029	19928	633	662	506
CHT 8-13	61' 1''	68' 3''	18.62	20.8	20478	21376	681	711	543
CHT 8-14	64' 7''	71' 9''	19.69	21.87	21927	22825	729	759	580

Commercial Hopper Tank Model CHT 9 - 27'10"

Model CHT 9 - 27' 10" (8.5 m) Diameter
Model #	Eave Height (ft)	Overall Height (ft)	Eave Height (M)	Overall Height (M)	Eave Capacity (Bushels)	Peak Capacity (Bushels)	Eave Capacity (M)	Peak Capacity (M)	To Peak (metric ton)
CHT 9-5	34' 8''	42' 9''	10.57	13.03	11569	12849	385	427	326
CHT 9-6	38' 3''	46' 3''	11.66	14.1	13403	14682	446	488	373
CHT 9-7	41' 9''	49' 10''	12.73	15.19	15236	16516	507	549	420
CHT 9-8	45' 4''	53' 4''	13.82	16.26	17070	18349	567	610	466
CHT 9-9	48' 10''	56' 11''	14.88	17.35	18904	20183	628	671	513
CHT 9-10	52' 5''	60' 5''	15.98	18.42	20737	22017	689	732	559
CHT 9-11	55' 11''	63' 11''	17.04	19.48	22571	23850	750	793	606
CHT 9-12	59' 6''	67' 6''	18.14	20.57	24404	25684	811	854	652
CHT 9-13	63'	71'	19.2	21.64	26238	27517	872	915	699
CHT 9-14	66' 6''	74' 7''	20.27	22.73	28071	29355	933	976	746

Commercial Hopper Tank Model CHT 10 - 30'11"

Model CHT 10 - 30' 11" (9.4 m) Diameter
Model #	Eave Height (ft)	Overall Height (ft)	Eave Height (M)	Overall Height (M)	Eave Capacity (Bushels)	Peak Capacity (Bushels)	Eave Capacity (M)	Peak Capacity (M)	To Peak (metric ton)
CHT 10-5	36' 5''	45' 4''	11.1	13.82	14651	16406	487	545	417
CHT 10-6	39' 11''	48' 10''	12.17	14.88	16915	18670	562	621	474
CHT 10-7	43' 6''	52' 5''	13.26	15.98	19178	20933	638	696	532
CHT 10-8	47'	55' 11''	14.33	17.04	21442	23197	713	771	589
CHT 10-9	50' 6''	59' 6''	15.39	18.14	23706	25461	788	846	647
CHT 10-10	54' 1''	63'	16.48	19.2	25969	27724	863	922	704
CHT 10-11	57' 7''	66' 6''	17.55	20.27	28233	29988	939	997	762
CHT 10-12	61' 2''	70' 1''	18.64	21.36	30497	32252	1,014	1,072	819
CHT 10-13	64' 8''	73' 7''	19.71	22.43	32760	34515	1,089	1,147	877
CHT 10-14	68' 3''	77' 2''	20.8	23.52	35024	36779	1,164	1,223	934
CHT 10-15	71' 9''	80' 8''	21.87	24.59	37288	39043	1,240	1,298	992
CHT 10-16	75' 4''	84' 3''	22.96	25.68	39551	41307	1,315	1,373	1,049

Commercial Hopper Tank Model CHT 12 - 37'1"

Model CHT 12 - 37' 1" (11.3 m) Diameter
Model #	Eave Height (ft)	Overall Height (ft)	Eave Height (M)	Overall Height (M)	Eave Capacity (Bushels)	Peak Capacity (Bushels)	Eave Capacity (M)	Peak Capacity (M)	To Peak (metric ton)
CHT 12-5	40' 1''	50' 9''	12.22	15.47	22162	25195	737	838	640
CHT 12-6	43' 7''	54' 4''	13.28	16.56	25422	28455	845	946	723
CHT 12-7	47' 2''	57' 10''	14.38	17.63	28682	31715	954	1,054	806
CHT 12-8	50' 7''	61' 5''	15.42	18.72	31941	34974	1,062	1,163	888
CHT 12-9	54' 3''	64' 11''	16.54	19.79	35201	38234	1,170	1,271	971
CHT 12-10	57' 9''	68' 5''	17.6	20.85	38461	41494	1,279	1,379	1,054
CHT 12-11	61' 4''	72'	18.69	21.95	41720	44753	1,387	1,488	1,137
CHT 12-12	64' 10''	75' 6''	19.76	23.01	44980	48013	1,495	1,596	1,220
CHT 12-13	68' 4''	79' 1''	20.83	24.1	48240	51273	1,604	1,705	1,302
CHT 12-14	71' 11''	82' 7''	21.92	25.17	51499	54532	1,712	1,813	1,385
CHT 12-15	75' 5''	86' 5''	22.99	26.34	54759	57791	1,820	1,921	1,468
CHT 12-16	78'	89' 8''	23.77	27.33	58017	61050	1,929	2,030	1,551
